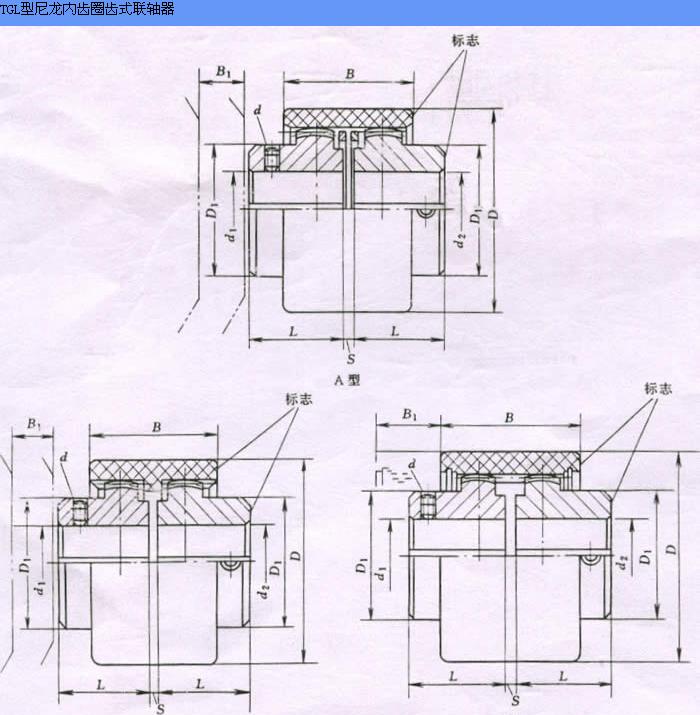

TGL nylon sleeve gear coupling is a kind of gear coupling. It can also be called drum gear coupling. The inner ring gear material is MC nylon material, and the outer gear sleeve is 45 forged steel. The utility model has the advantages of small size, light weight, small moment of inertia, low noise, convenient assembly and disassembly, and no lubrication. It can be applied to small and medium torque working conditions, such as fans, pumps, lubrication pumps, textile machinery, etc. TGL nylon sleeve gear coupling has the following three types of structure: A---type basic type: B---type inner ring type: C---type outer ring type    |
gear coupling
gear coupling
TGL nylon inner ring gear drum gear coupling
Time:18-09-27
gear coupling
TGL nylon inner ring gear drum gear coupling
Time:18-09-27
|
TGL nylon sleeve gear coupling is a kind of gear coupling. It can also be called drum gear coupling. The inner ring gear material is MC nylon material, and the outer gear sleeve is 45 forged steel. The utility model has the advantages of small size, light weight, small moment of inertia, low noise, convenient assembly and disassembly, and no lubrication. It can be applied to small and medium torque working conditions, such as fans, pumps, lubrication pumps, textile machinery, etc. TGL nylon sleeve gear coupling has the following three types of structure: A---type basic type: B---type inner ring type: C---type outer ring type |
